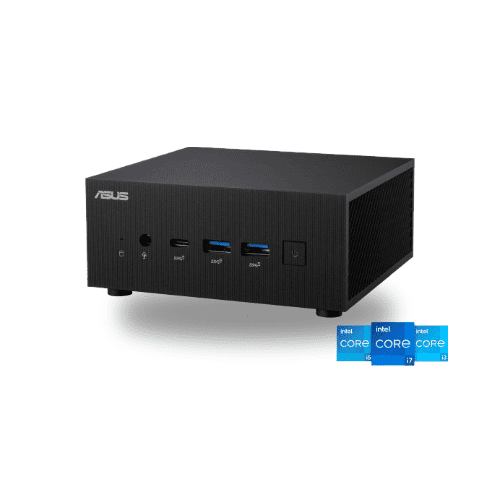

PN64

Windows®11 64bit, Windows®11 Pro 64bit, Linux, or W/O OS
(Please check with local rep on validated Linux version)

Intel® Core™ i7-12700H/ i5-12500H/ i3-1220P (cTDP:35W)

 Integrated

Integrated – Intel® Iris® Xe Graphics (i5/i7) or
Intel® UHD Graphics (i3)

2 x DDR5 SO-DIMM slots for DDR5 4800 MHz, 1 x 8GB – 2 x 16GB (total)

 1 x 6Gb/s SATA connector for 2.5” 1TB HDD/SSD*
1 x M.2 2280 PCIe Gen4 slot for 128GB – 2TB SSD* (NVMe only)
*For higher capacity, please refer to QVL (location: official website → Support → CPU / Memory Support)

Intel® Wi-Fi 6E or MTK Wi-Fi 6E and Bluetooth 5

Intel® LAN, 10/100/1000/2500 Mbps
Supports Wake on LAN / PXE / Auto Power on / RTC Wake

1 x USB 3.2 Gen2 Type-C (10 Gbps)
2 x USB 3.2 Gen2 (10 Gbps)
1 x Audio Jack (Line out, Mic in/Headphone out)
*All data transfer speed is according to ASUS testing results; actual performance may vary depending on
objective environmental changes.

1 x Kensington Lock

 x USB 3.2 Gen2 (10 Gbps)
1 x USB 3.2 Gen2 Type-C (10 Gbps, Support DP1.4, DP)
2 x HDMI 2.0 Port
1 x Configurable Port
(options: Display Port 1.4/ HDMI2.1/ COM/ VGA/ Intel® 2.5G LAN)
1 x Intel LAN (RJ45)
1 x Padlock ring
1 x DC-in
*Supports up to four displays via duel HDMI, configurable port and USB 3.2 Gen2 Type-C support DP

fTPM 2.0 or TPM 2.0 chip (Optional)

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 5.0,
Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick
Note and ASUS DRAM SPD (Serial Presence Detect) memory information

The following software is included in OS:
MyASUS, ASUS Product registration program, Asus Control Center test, Watchdog timer

19Vdc, 6.32A, 120W (i7-12700H/ i5-12500H)
19Vdc, 4.74A or 19.5Vdc, 4.62A 90.0W (i3-1220P)

0%~95% Relative Humidity

BSMI / CB / CE / FCC / UL / CCC / Energy Star / C-Tick / WiFi / RF / VCCI

Ultrafast PCIe^® 4.0 SSD

ASUS ExpertCenter PN64 supports one PCIe^® Gen 4 X4 SSD to deliver low-latency data transfers at speeds of up to 8 GB/s, that’s twice the data transfer speeds of PCIe 3.0.

• *Test model: SAMSUNG GXA7301Q / SAMSUNG EXD7201
• *Actual performance may vary depending on objective environmental changes.

Superfast 2.5 Gbps Ethernet

ASUS ExpertCenter PN64 features next-generation 2.5GBASE-T technology for superfast 2.5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks.

• *Minimum Category 5e network cables (within 30m range) required for 2.5Gbps operation according to ASUS testing result.
• *Actual performance may vary depending on objective environmental changes.

Faster and better DDR5 RAM

ASUS ExpertCenter PN64 is powered by13th Gen Intel^® Core^™ CPU supporting the next gen memory – DDR5. Supporting DDR5 allows you to transfer data faster than DDR4. Comparing to DDR4, DDR5 memory modules bring a higher level of bandwidth and speed, it improves 34% faster on memory read and 37% on write. DDR5 helps you to drive greater performance and productivity.

• *Testing configuration: PN64 | 2*16G DDR5 4800MHz
• *Testing configuration: PN63-S1 | 2*16G DDR4 3200MHz
• *Actual performance may vary depending on objective environmental changes.

Configurable Port

ASUS ExpertCenter PN64 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners and receipt printers.
